Project Title: Shepperton, Surrey – Concrete Repairs, Anti-Carbonation Coating & Waterproof Membrane
Location: Shepperton, Surrey
Sector: Residential
Project Overview
Concrete Repair Solutions were appointed to undertake concrete repair works, application of anti-carbonation coatings and installation of a waterproof membrane to the soffit and landing areas of a residential property on Bruce Avenue, Shepperton.
The scope addressed deterioration to exposed reinforced concrete elements, together with protective treatments to enhance durability and prevent future water ingress.
The works formed part of a targeted refurbishment programme to reinstate structural integrity and improve long-term performance of the external access areas.
What We Did
- Removed defective and delaminated concrete
- Cleaned exposed reinforcement
- Applied corrosion inhibiting primer and bonding bridge to steel and prepared concrete surfaces
- Reinstated repairs to match existing levels using polymer-modified repair mortar
- Applied primer and stabilising solution to exposed concrete surfaces
- Applied anti-carbonation coating system to all exposed concrete areas

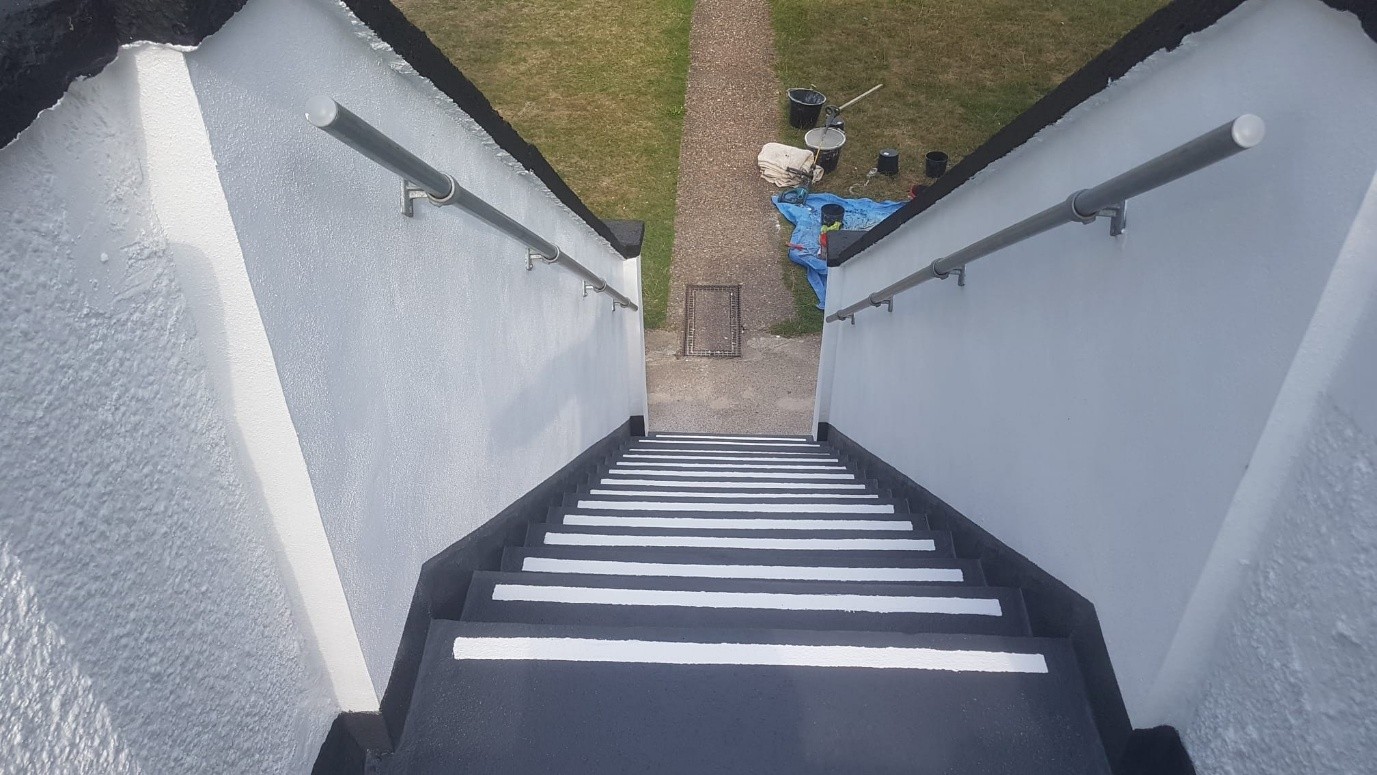

- Installed waterproof membrane to upper landing
Technical Overview
The property comprises four self-contained maisonettes arranged in a two-up, two-down configuration within a semi-detached residential building.

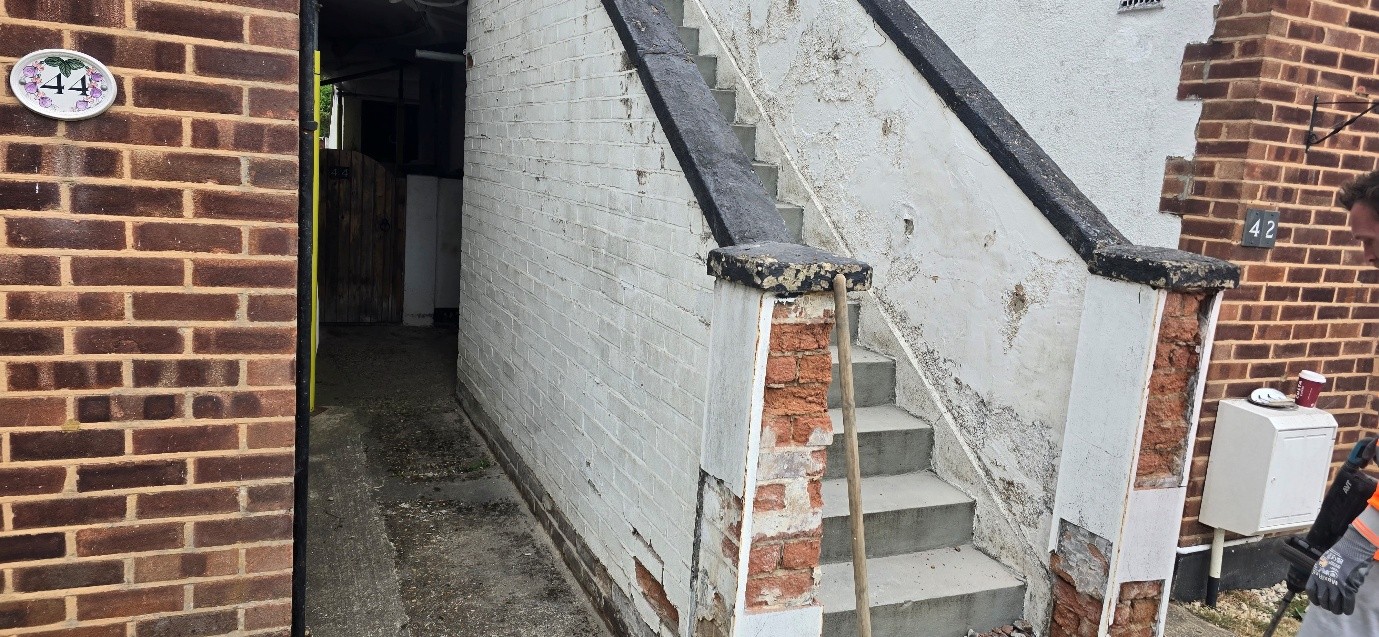

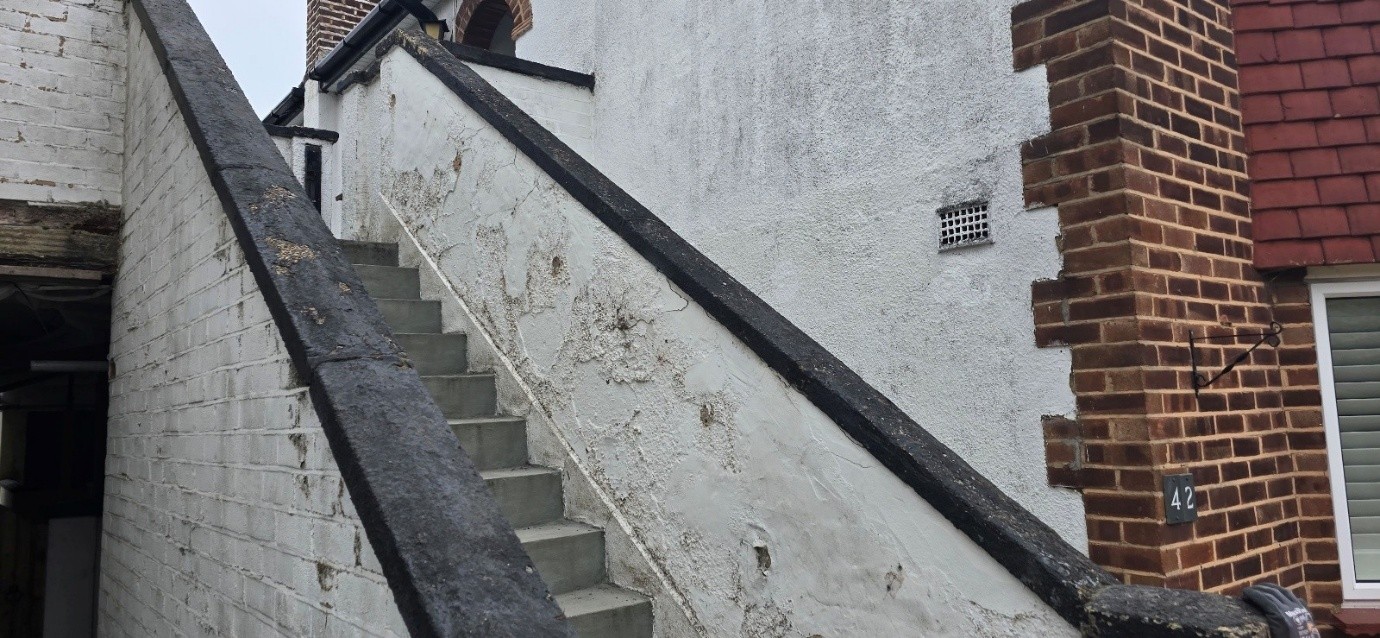

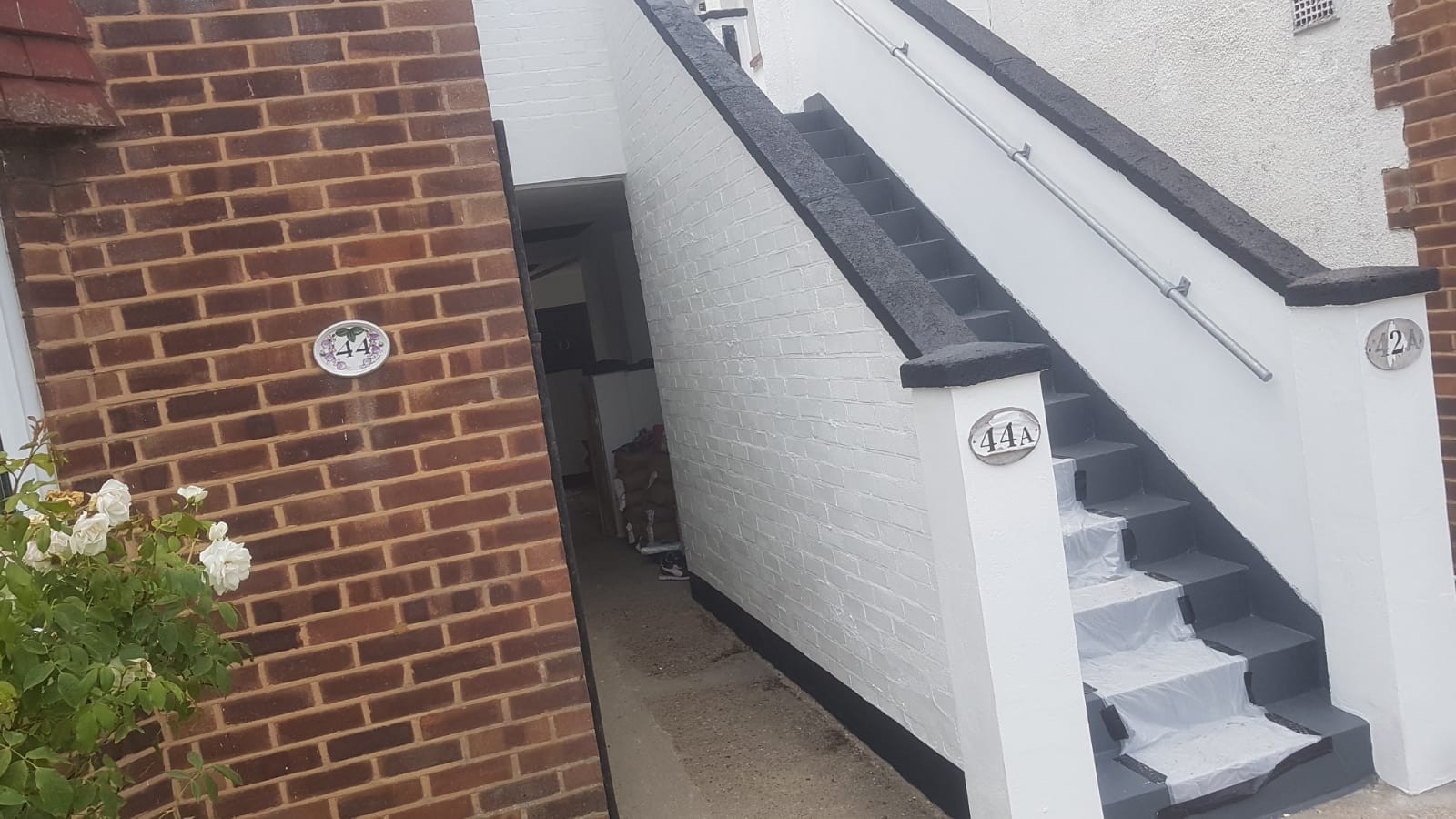

Each dwelling has a private entrance, with ground floor units accessed directly and upper floor units accessed via external staircases located at the front and rear of the building. The soffit and landing areas form key structural and access components of the building’s external circulation routes.

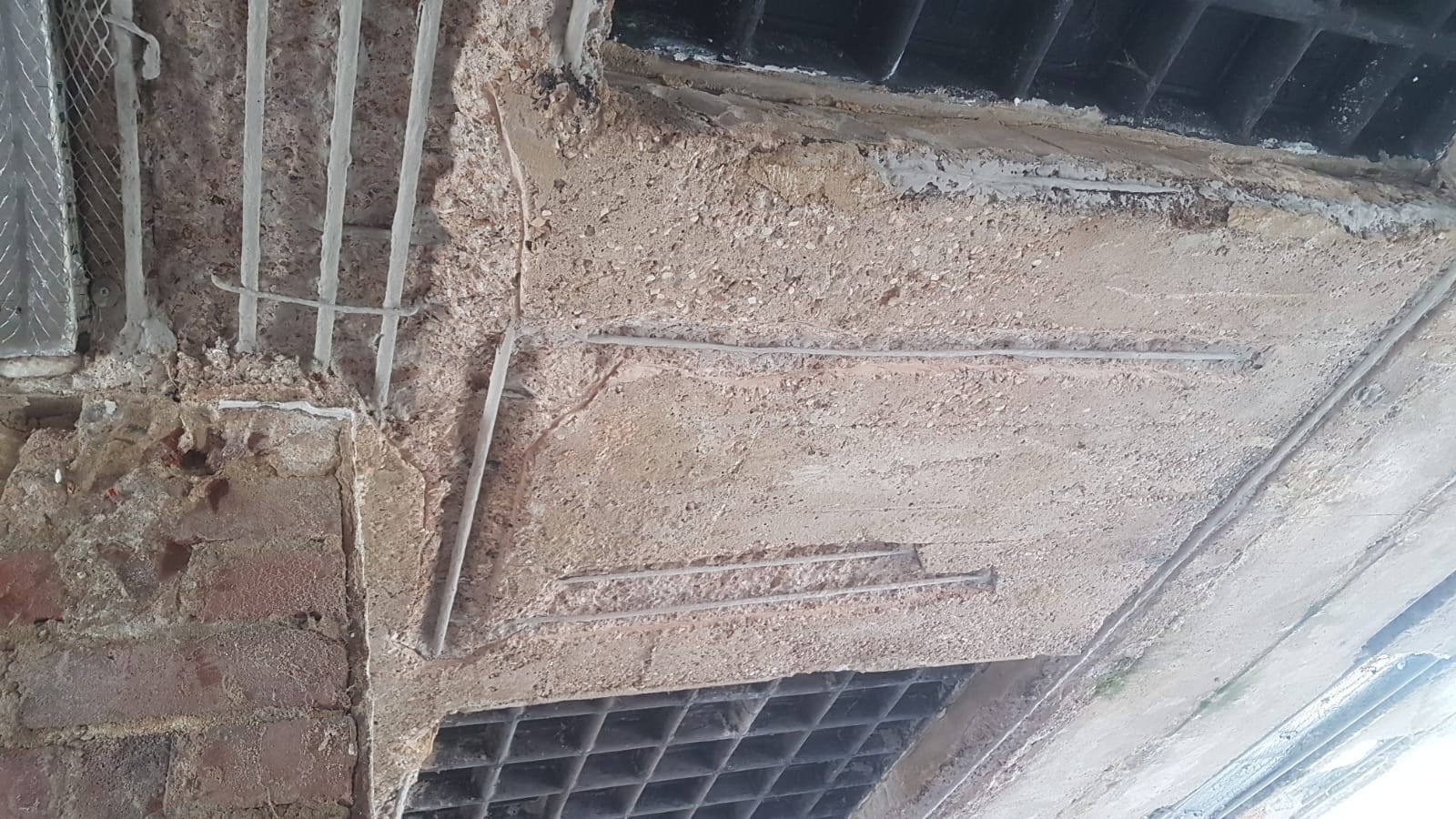

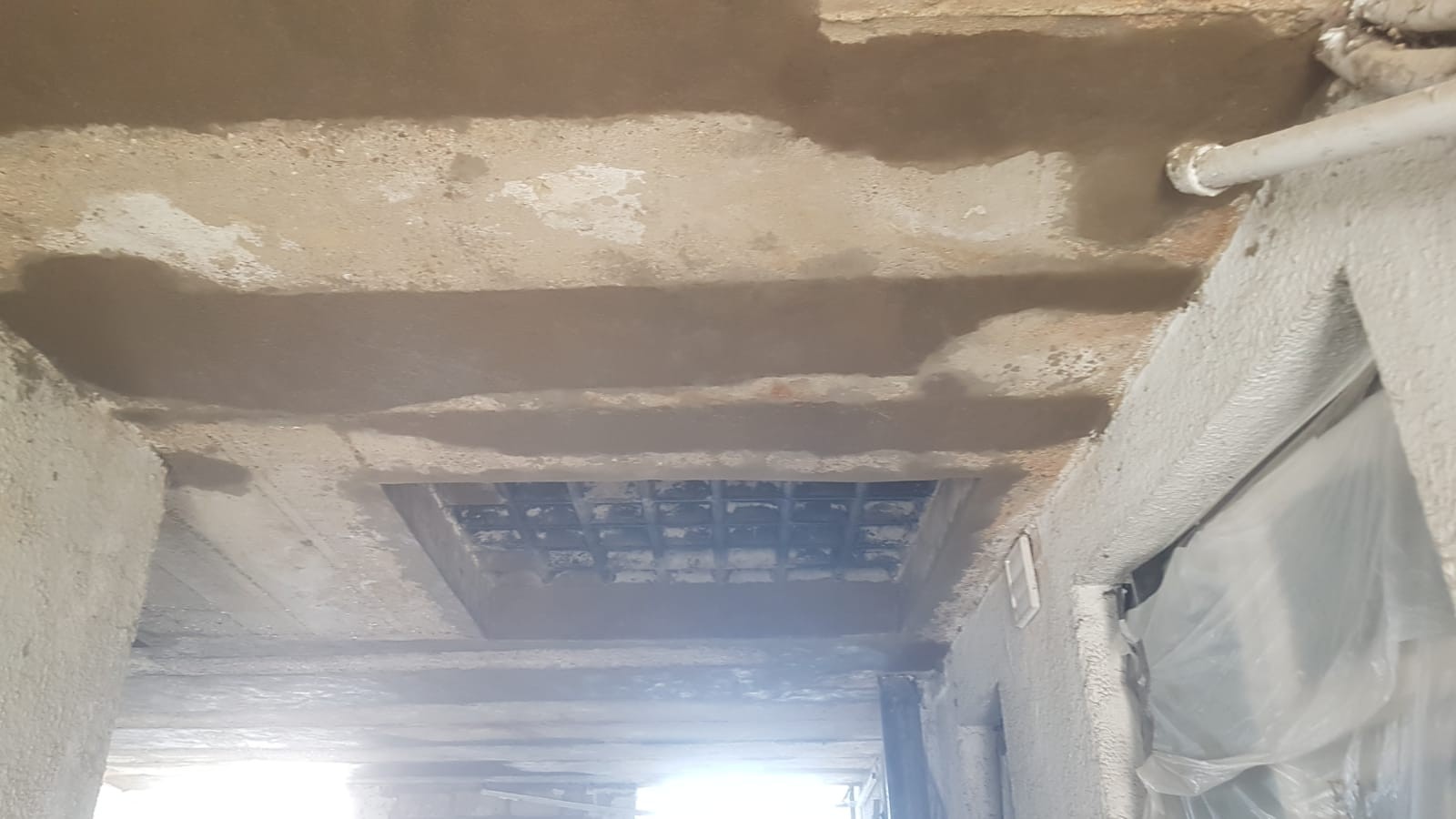

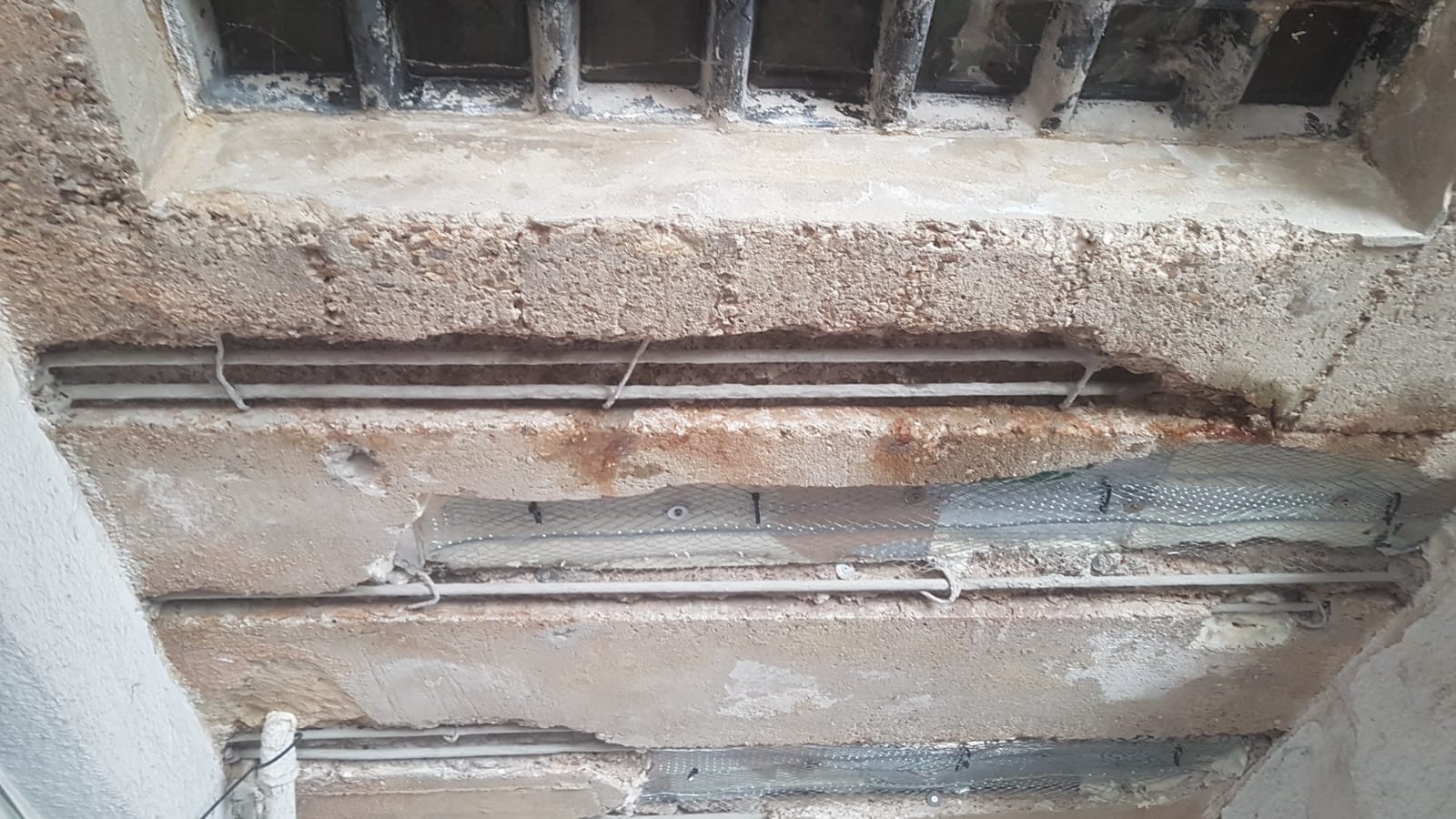

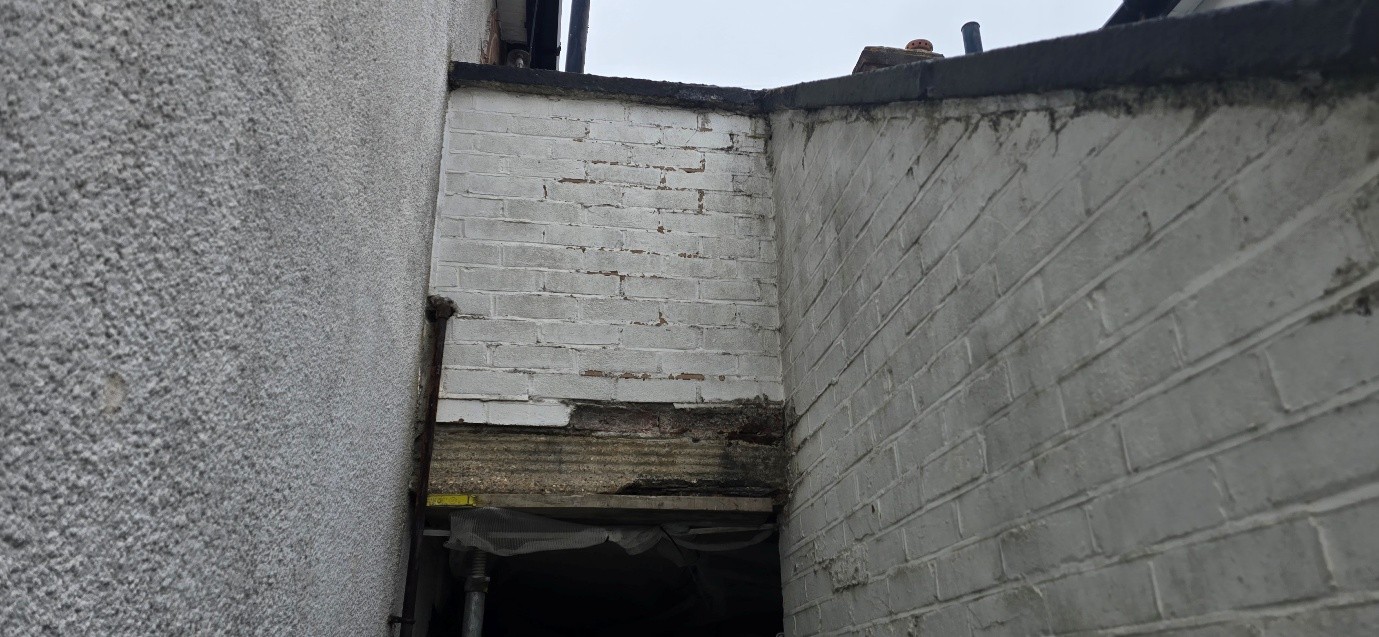

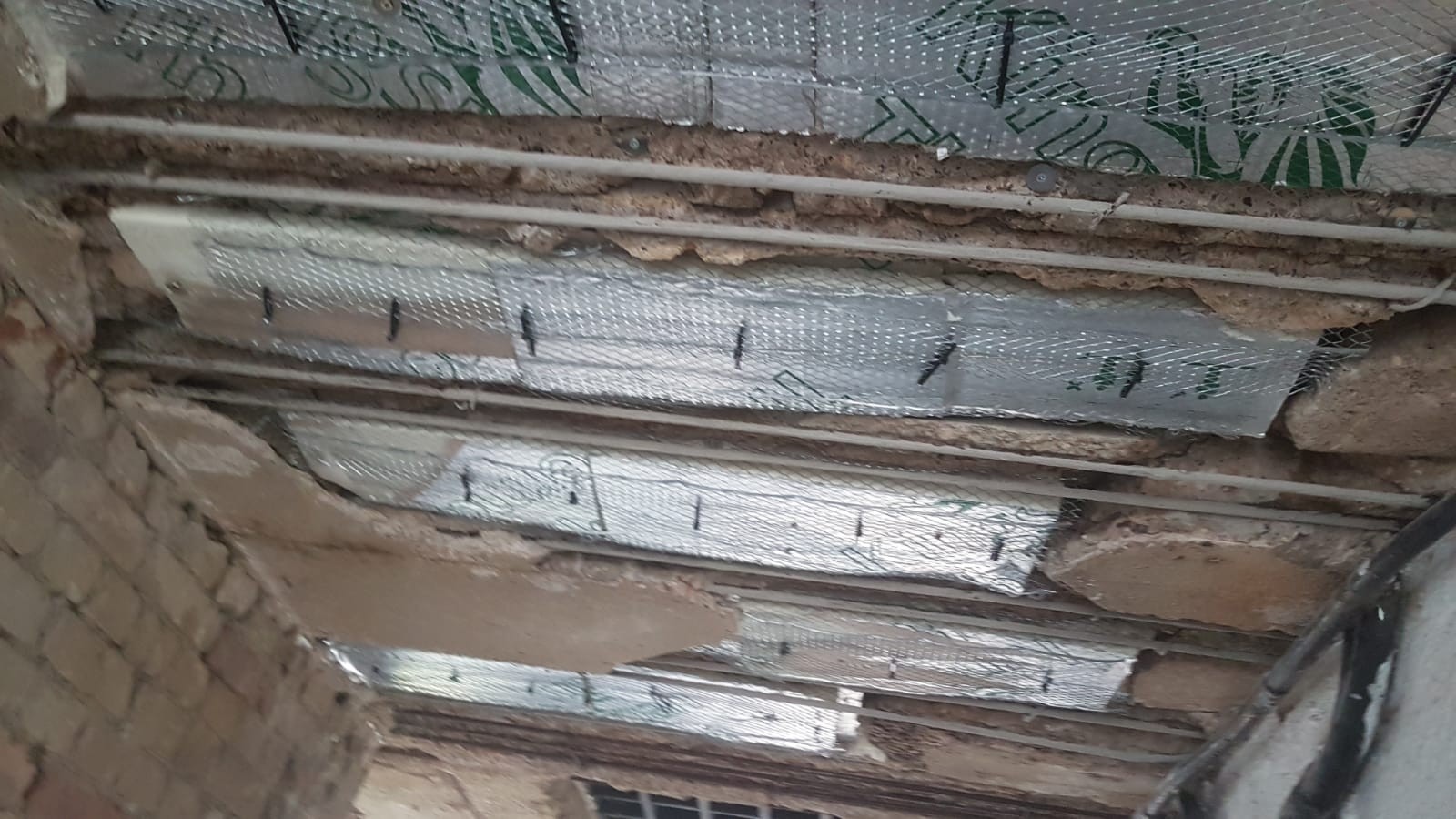

Localised deterioration to concrete soffits and landing areas required controlled breakout and reinstatement. Following removal of defective material, reinforcement was prepared and treated with corrosion inhibiting primer prior to application of bonding bridge and polymer-modified repair mortar.

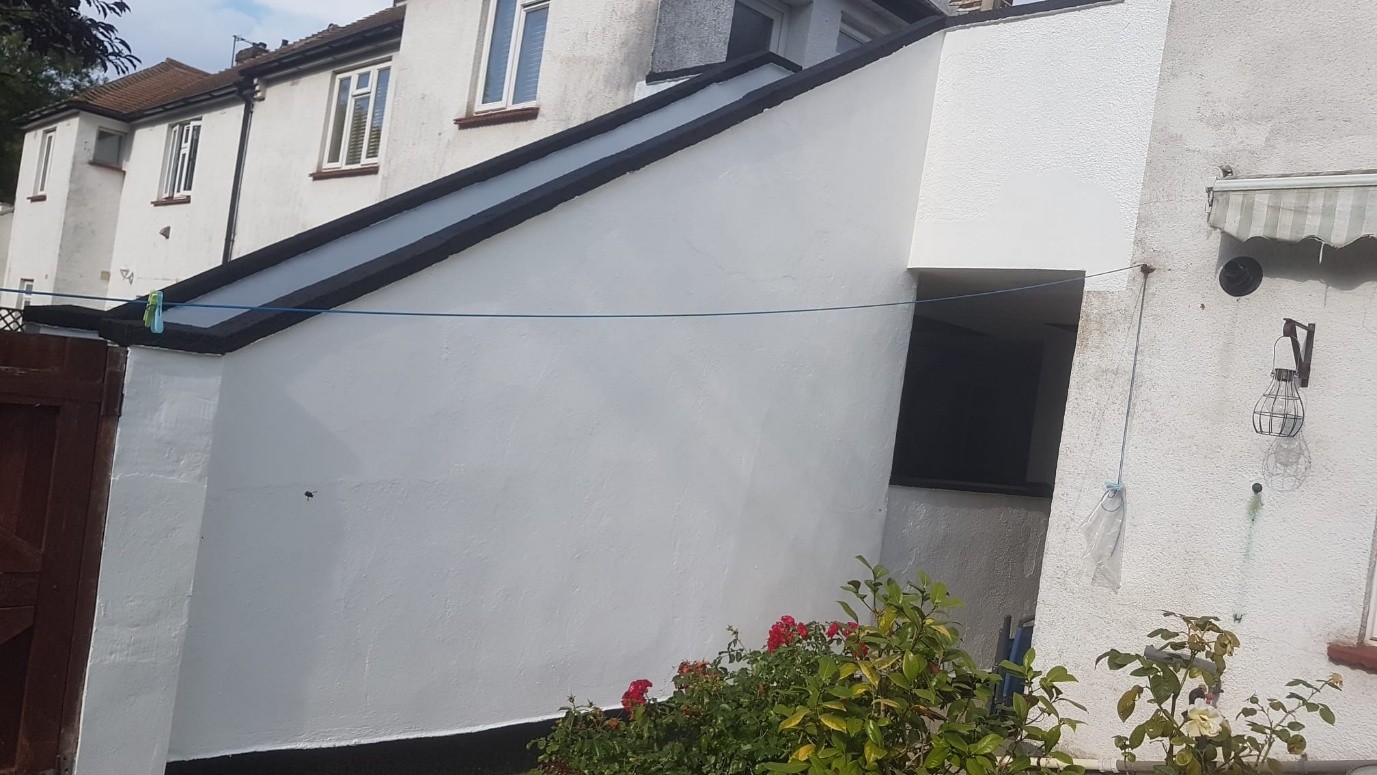

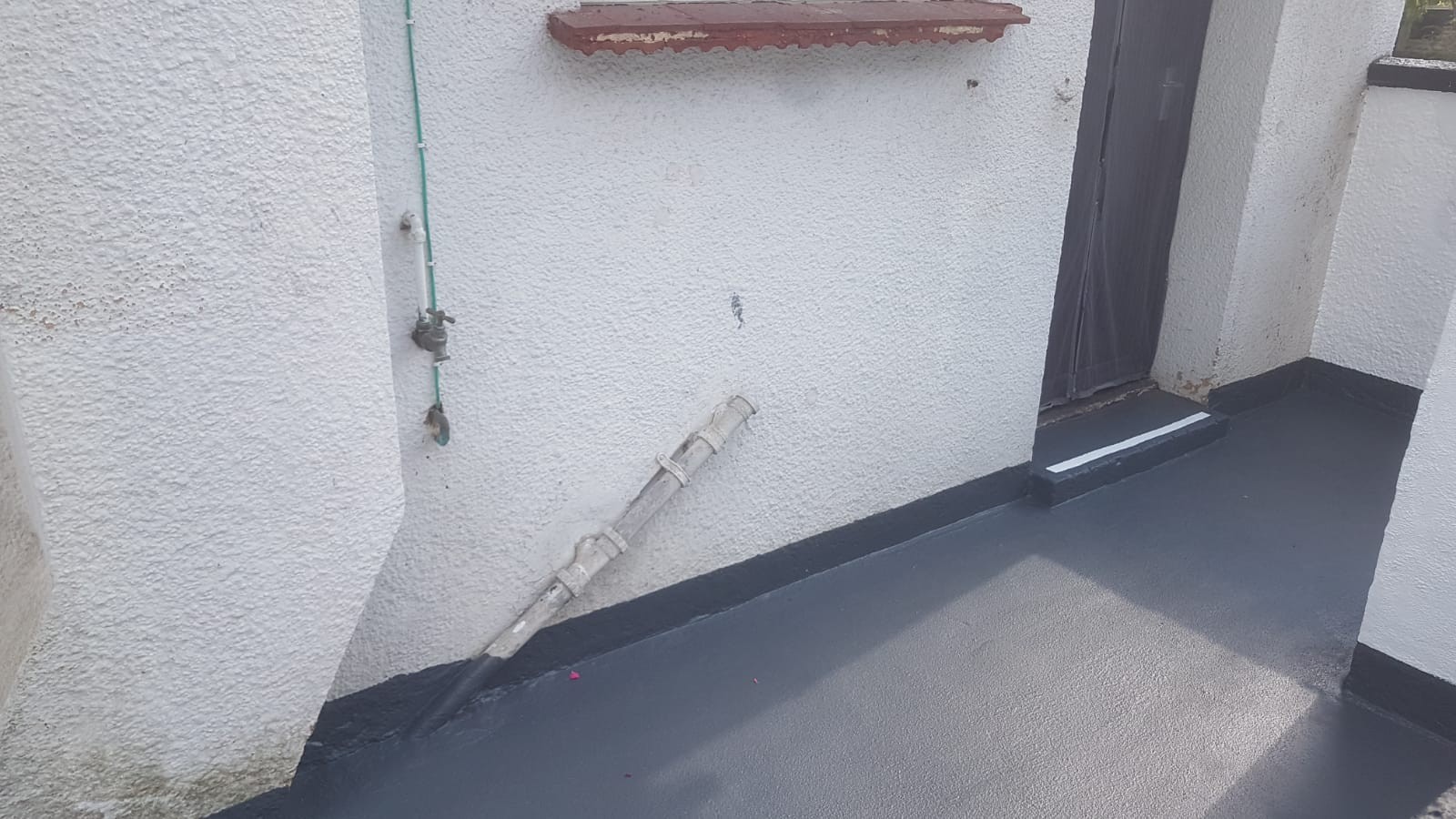

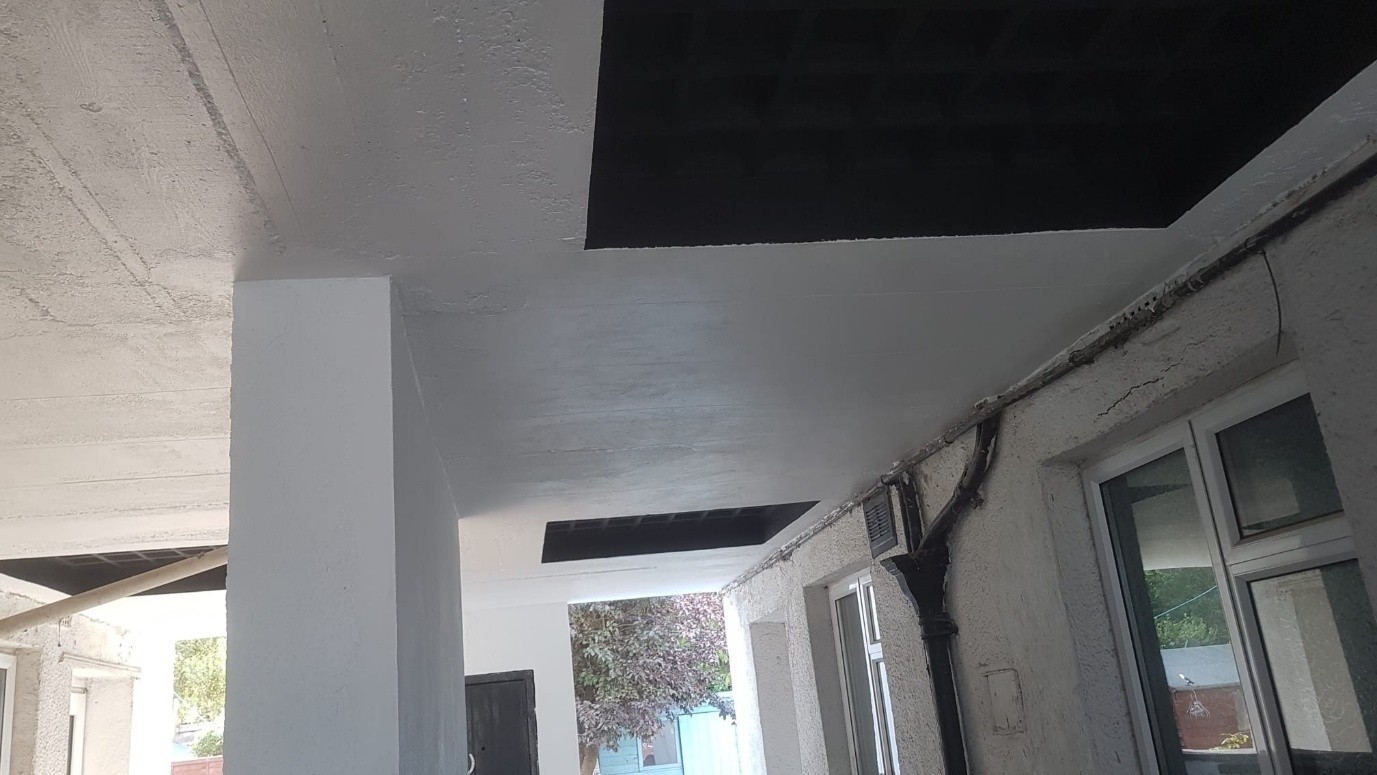

Following reinstatement, exposed concrete surfaces were primed and treated with an anti-carbonation coating system to reduce future carbonation-related deterioration. A waterproof membrane was applied to the upper landing to prevent water ingress and protect the repaired substrate.
Project Challenges
- Working within an occupied residential environment
- Maintaining safe access for residents during external works
- Achieving consistent levels and finishes to exposed landing areas
- Integrating waterproofing with structural repair elements
Outcome
The completed works reinstated the integrity of the affected soffit and landing areas and incorporated protective systems to enhance durability.
The anti-carbonation coating and waterproof membrane provide long-term protection against environmental exposure and water ingress, supporting the ongoing performance of the building’s external access structure.
Services Demonstrated
- Concrete repair and reinstatement
- Reinforcement preparation and corrosion protection
- Polymer-modified repair mortars
- Anti-carbonation coating systems
- Waterproof membrane installation
- Residential structural refurbishment
